Slim and Lightweight CCD Barcode Scanner CS-1600

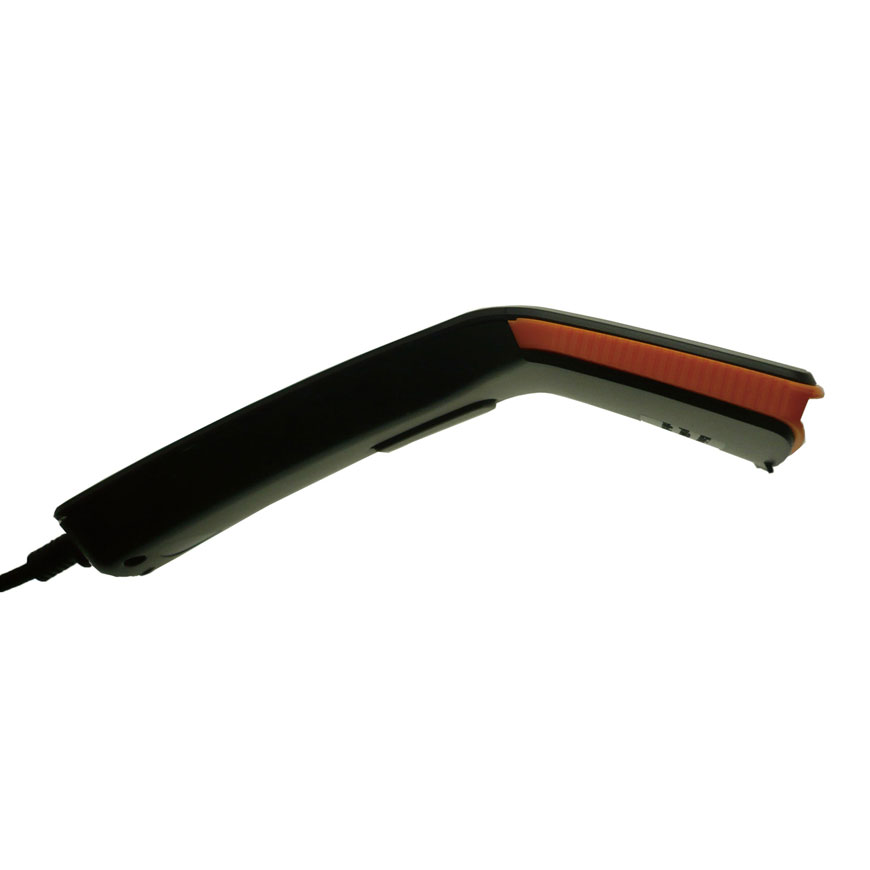

Side of Barcode Scanner CS-1600
The slim and light-weight CS-1600 CCD barcode scanner provides high-sensitivity 2500 pixels CCD scan engine with a light-weight, easy-to-fit handheld design to make long-time operation be labor less and enhance productivity.
With the outstanding scanning speed and decoding performance, CS-1600 barcode scanner is ideal for most integrated system or machines. The desirable scan rang (up to 18 cm) ensures CS-1600 suitable for groceries, chain store service, inventory data management, and many other interior and office applications. Moreover, the stylish and ergonomic designs make the scanning process easier and more comfortable.
Accurate, reliable and easy to use, CS-1600 is the ideal choice for your daily data accessing applications.
Features
- Scan Speed: 250 scan/sec
- Scan Range: up to 18 cm
- Wave Length: 590 nm
- Reading PCS: 0.45
- Full Featured & Full Functions.
- High-Speed 2500 Pixels CCD Sensor.
- Interface: Keyboard Wedge, RS-232, USB
Specification
| MODEL | CS-1600 |
|---|---|
| General | |
| Scan Rate | 250 scans/sec |
| Sensor Type | 2500 Pixel Linear CCD |
| Wavelength | 590nm, Brilliant Yellow |
| Depth of Field | 0 ~ 20 cm |
| Width of Field | Contact Max 6.5CM, long Max 15CM |
| Contrast Ratio | 45% |
| Resolution | 0.1mm (4 mil) |
| System Interface | Keyboard Wedge / RS-232 / USB |
| Indicator | Buzzer and LED illumination (BLUE) |
| Readable Bar Code Symbologies | Code 39/32, Full ASCII Code 39, Code 128, Code 11, Interleaved 2/5, Industrial 2/5/IATA, Matrix 2/5, China Postage, Code93, MSI/PLESSEY, Codabar/NW7, Code 4, EAN-8/JAN-13, UPC-A, EAN-13/JAN-13, ISBN/ISSN, RSS-14 |
| Electrical | |
| Power Input | 5VDC ± 5% |
| Power Consumption | |
| Operation Mode | 260 mA 40 mA (Standby Mode) |
| Others | |
| Power | +5VDC via cable |
| Material | ABS |
| Color | Black, White |
| Shock Resistance | 1.5m drop onto concrete |
| Compliance | CE, FCC |
| Weight | 150 g (with cable) |
| Dimension (L x W x H: mm) | 170.4 x 72.8 x 42.2 |
| Cable Length | 180 cm |
| Ambient Light | 4500 Lux |
| Operating Temperature | 0°C ~ 50°C |
| Operating Humidity | 20% - 80% RH, non-condensing |
| Storage Temperature | -20°C ~ 60°C |
| Storage Humidity | 5% - 95% RH, non-condensing |
